HZ0103003

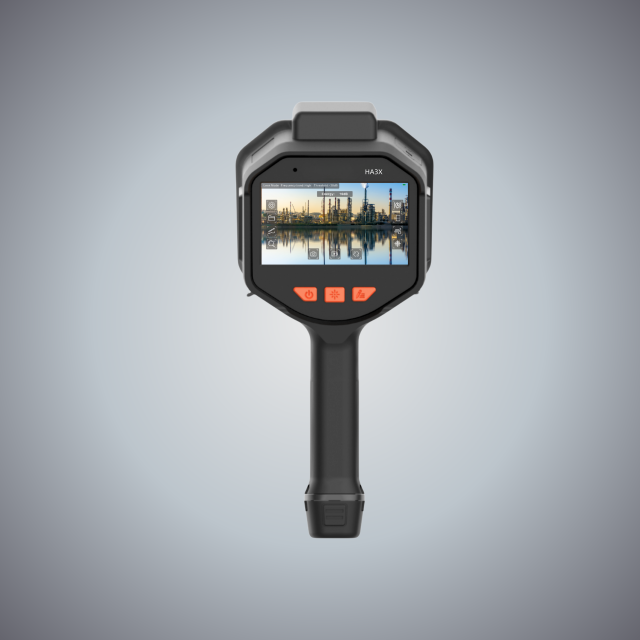

El Hertzinno HA3X es el buque insignia intrínsecamente seguro de la serie HA3 de tercera generación, diseñado específicamente para entornos industriales peligrosos
Diseñado para atmósferas explosivas, el HA3X contiene Certificaciones ATEX (Ex ib IIC T4 Gb y Ex ib IIIC T80 °C Db) , garantizando la seguridad sin comprometer el rendimiento
Diseño intrínsecamente seguro (ATEX): Certificado para su uso en entornos potencialmente explosivos (zonas 1 y 2), protegiendo al personal mientras inspecciona activos críticos.
Ancho de banda y alcance ultra amplios: Detecta frecuencias ultrasónicas de hasta 150 kHz a distancias de hasta 210 metros , capturando fallas en etapas tempranas que las cámaras estándar no detectan
Diagnóstico inteligente: Cuenta con inteligencia artificial en el dispositivo para Reconocimiento del tipo de descarga parcial Estimación de tasa de fuga de gas (Corona, Superficie, Flotante) y en tiempo real (sensibilidad >0,0032 L/min)

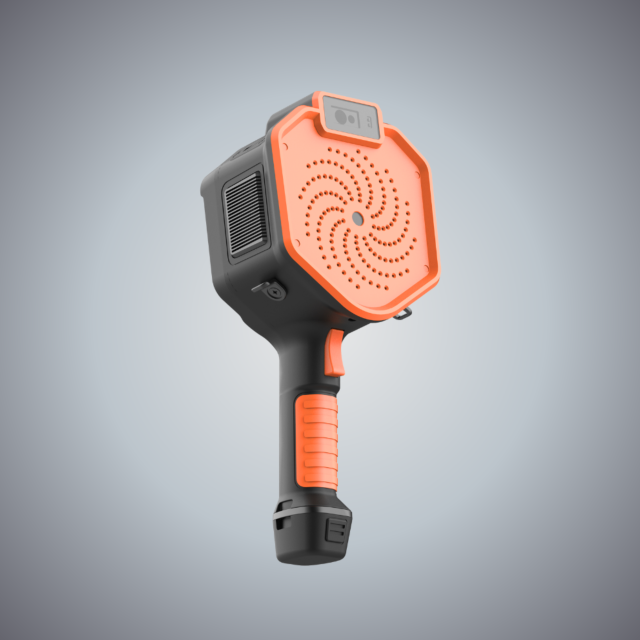

Imágenes de precisión: El conjunto de 144 micrófonos logra Precisión de localización de ±1° (error ≤1 cm a 1 m), diferenciando claramente fuentes de sonido densas
Model |
HA3X |
Acoustic |
|
Microphones |
144 Digital MEMS Microphones |
Frequency Bandwidth |
2 k~150 kHz |
Dynamic Range |
-30 dB~120 dB |
Minimum Imaging Sensitivity |
10 kHz: 3 dB SPL 20 kHz: -15 dB SPL 40 kHz: -5 dB SPL 60 kHz: 10 dB SPL 80 kHz: 35 dB SPL 100 kHz: 45 dB SPL |
Operating Distance |
0.3 m ~ 210 m |
Dynamic Range of Multiple Targets |
0 dB~18 dB |
Space Resolution |
≤1 cm @1 m, 40 kHz |
Microphone Self-Check |
Support |
General |
|
Optical Camera |
13 MP |
Camera FOV |
72°±3° |
Fill Light |
LED Light |
Image Resolution |
4K ( 3840 × 2160 ), 1080P |
Digital Zoom |
1/2/4/8 |
Video Image Resolution |
1920 × 1080 @ 30 fps, 1920 × 1080 @ 60 fps |
Storage |
128 GB micro-SD Card |
Annotation |
Text, Voice, Photo, Tags |
E-Compass |
Support |
Display |
5-inch, Capacitive Touch Screen, 1920*1080 |
Wi-Fi & Bluetooth |
IEEE 802.11a/b/g/n/ac 2.4G/5G & BT4.2 |
Weight |
Less than 1.2 kg |
Dimension |
333 mm*152 mm*115 mm |
Working Temperature Range |
-20℃ ~ 55 ℃ |
Storage Temperature Range |
-40℃ ~ 85 ℃ |
Humidity |
10%~95% ( non-condensing ) |
Laser Distance Measurement |
0.1 – 30 m(±1 mm) (Laser Class II, 620 -690 nm, ＜1 mw) |
Data Transmission |
USB, Wi-Fi, Bluetooth |
USB Port |
Type-C |
Battery |
Li-Ion Rechargeable Battery |
Charging Time |
2.5 h ( from 10% to 90%) & PD Fast Charging |
Protection Level |
IP54 |
ATEX |
Ex ib lIC T4 Gb Ex ib llIC T80℃ Db |
Tripod Mount |
UNC 1 /4-20 |
Unlike bulky "Flameproof" (Ex d) devices that rely on heavy enclosures to contain explosions, the HA3 Ex utilizes Intrinsic Safety (Ex ib) technology.
Energy Limitation: We rigorously control the circuit's current and power consumption to ensure that the electrical energy always remains below the ignition threshold of explosive gases (even in fault conditions).
Component Encapsulation: Critical energy-storing components (such as capacitors) are specially encapsulated to prevent spark discharge.
The Result: This advanced engineering allows us to maintain a rugged IP65 rating for dust and water protection while keeping the device lightweight and safe for Zone 1/2 environments.
