HZ0103005

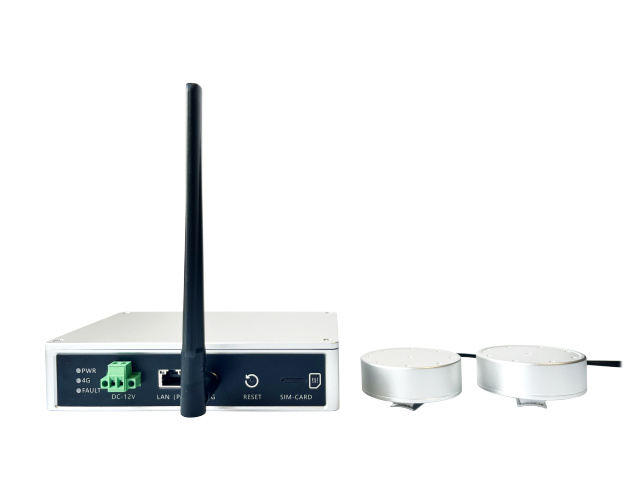

HZ-WL-15A Natural Gas Well Gas Leak Acoustic Fingerprint Intelligent Monitoring Device is an edge‑computing acoustic monitor designed by HERTZINNO for wellheads and high‑pressure natural gas pipelines. Its core technology path is acoustic fingerprint recognition + edge computing. Equipped with an embedded deep learning algorithm chip, it performs AI inference directly on the device without relying on cloud connectivity.
The device integrates a 9‑channel MEMS acoustic sensor array with a frequency response range of 20Hz – 80kHz, capable of capturing the turbulent noise and pipe wall stress waves generated by high‑pressure gas jets. It automatically filters out environmental interference such as wind, rain, and vehicle sounds, accurately extracting the unique acoustic fingerprint of gas leaks.
The main unit features an aluminum alloy enclosure with IP51 protection and Ex ib IIC T6 Gb intrinsically safe explosion‑proof certification. Operating temperature range is -30°C to +60°C, suitable for harsh outdoor environments. It supports 4G (full network compatibility) and Ethernet communication, with onboard 32GB storage (expandable up to 2TB). Standard industrial protocols (HTTP, Modbus TCP) enable seamless integration into existing monitoring platforms or SCADA systems.
Typical applications:
Real‑time gas leak warning at natural gas wellheads
Unattended monitoring of flanges and valves on high‑pressure pipelines
24/7 intelligent inspection of remote well sites
HZ-WL-15A upgrades leak detection from “periodic manual patrol” to proactive intelligent listening, significantly reducing false alarm rates and improving safety and operational reliability at oil & gas facilities.
|
Model |
HZ-WL-15A |
|
Industrial Specifications |
|
|
Power Supply |
DC 12V (Support DC 9V~15V, φ5.5mm barrel connector) |
|
Network Interface |
1 x RJ45 10/100/1000 Mbps Adaptive Ethernet port |
|
4G Communication |
Supports full network (China Mobile, Unicom, Telecom) |
|
Power Consumption |
< 4W |
|
Protection |
Overvoltage protection / Overcurrent protection |
|
Protection |
IP51 |
|
Explosion-proof Rating |
Ex ib IIC T6 Gb |
|
Operating Temperature |
-30°C ~ 60°C (Humidity <90% non-condensing) |
|
Sensor Specifications |
|
|
Sensor Type |
MEMS Acoustic Sensor Array |
|
Number of Sensors |
9 MEMS |
|
SNR |
65 dB |
|
Frequency Range |
20 Hz ~ 80 kHz |
|
Sensitivity |
-36 dBV/Pa |
|
Power Consumption |
< 0.5W |
|
Protection |
IP65 |
|
Weight |
100g |
|

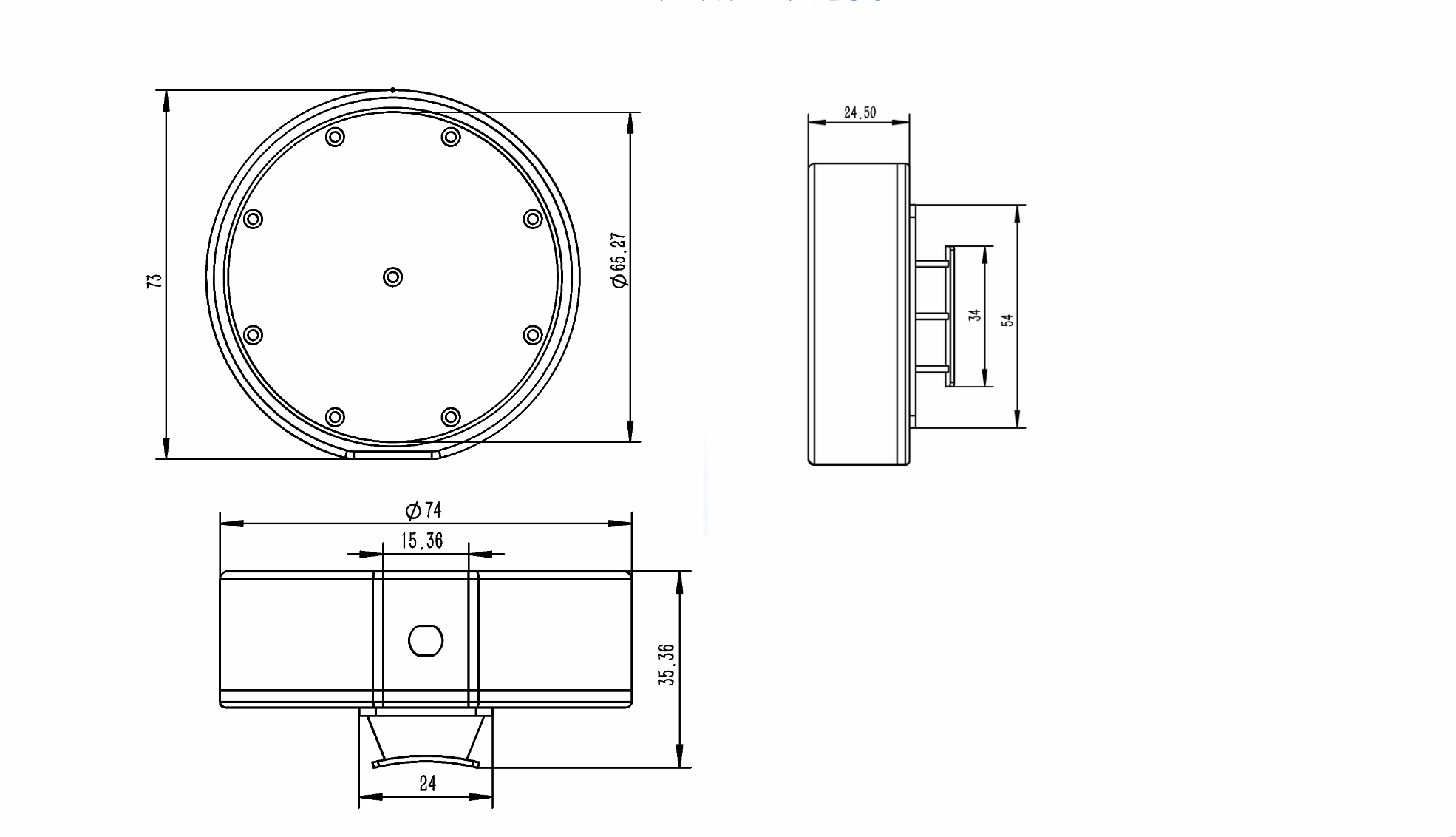

Sensor Dimensions |
74 × 73 × 22.5 mm (mounting bracket excluded) |
|
Physical Specifications |
|
|
Sensor Channels |
2 |
|
Interface Type |
RJ45 / Analog signal(Sensor) |
|
Sensor Interface |
Aviation connector |
|
Indicator Lights |
Power / Signal / Fault |
|
Internal Storage |
32 GB |
|
Storage Expansion |
Micro SD card (up to 2 TB) |
|
Enclosure Material |
Aluminum alloy |
|
Mounting Method |
Bracket / Rail mounting |
|

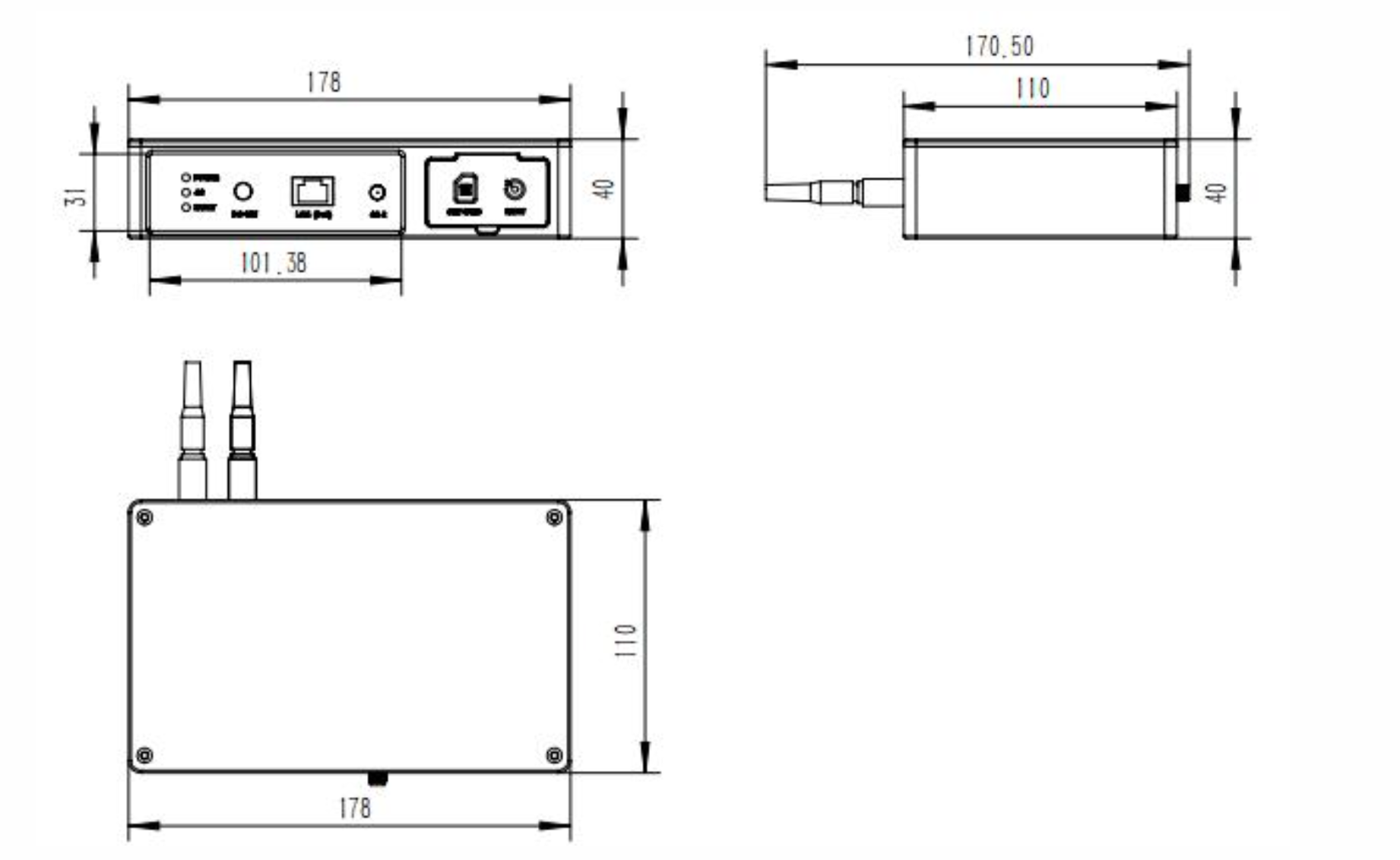

Main Unit Dimensions |
178 × 110 × 40 mm |
|
Main Unit Weight |
0.75kg |
|
Functional Features |
|
|
Sampling Rate |
48 kHz |
|
Sampling Mode |
Simultaneous sampling |
|
Hardware Reset |
Supported |
|
RTC |
Supported |
|
Chassis Grounding |
Supported |
|
Network Protocols |
HTTP, TCP, WebSocket, NTP, LTE |
|
Configuration |
Built-in web interface |
|
Firmware Upgrade |
Supported |
|
Algorithm Upgrade |
Supported |
|
User Management |
Single user, password change supported |
|
Typical Applications |
Gas well leak acoustic monitoring |
